Fixing a Faulty Sustain Pedal: A Step-by-Step Guide

Updated at: 13/02/2025

The sustain pedal, a seemingly simple component of any keyboard instrument, can unexpectedly become a source of significant frustration. A malfunctioning sustain pedal, whether it's failing to engage completely, responding erratically, or emitting unwanted clicking sounds, can disrupt even the most practiced performance and severely hinder your musical flow. This frustrating issue is often more easily remedied than you might think, requiring only basic tools and a little patience. The problem might stem from a loose connection, a worn-out component, or even just a simple misalignment.

This guide will take you through a systematic troubleshooting process, equipping you with the knowledge and confidence to diagnose and repair a faulty sustain pedal. From identifying the source of the problem to implementing effective solutions, we'll cover every step of the way, ensuring that you can get back to playing your instrument without interruption. Let's dive into our step-by-step guide to get your sustain pedal working perfectly again.

Preparation and Safety Guidelines

Tools Needed
  • Phillips head screwdriver
  • Gorilla tape (or similar strong tape)
Safety Guidelines
  • Always disconnect the power to your keyboard before beginning any repairs. Electricity can be dangerous.
  • If you are not comfortable working with electronics or are unsure about any step, consult a qualified technician. Improper repairs can cause further damage.
  • Take photos or make detailed notes as you disassemble your pedal. This will help you reassemble it correctly.

Step-by-Step Instructions

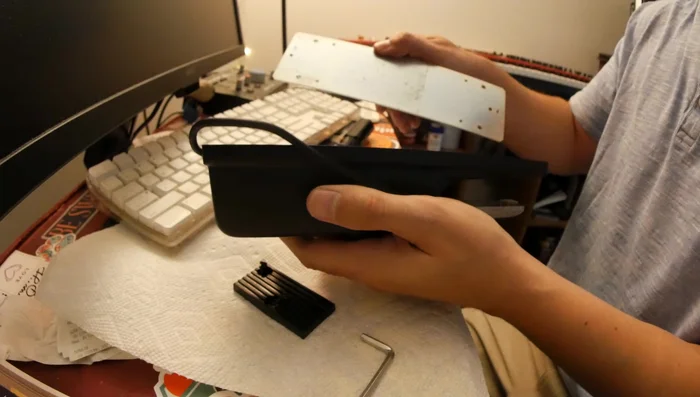

  1. Disassemble the Pedal

    • Unscrew and open the sustain pedal.
    Unscrew and open the sustain pedal.
    Disassemble the Pedal

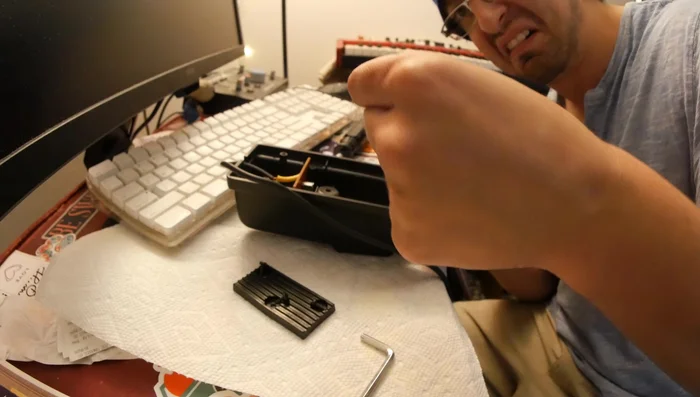

  2. Clean the Pedal

    • Clean any dust or debris inside the pedal.
    Clean any dust or debris inside the pedal.
    Clean the Pedal

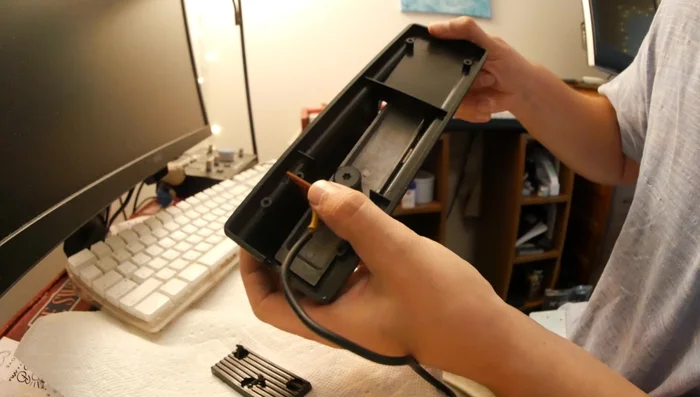

  3. Identify the Problem

    • Locate the small button that activates the sustain function and the contact pad it pushes against.
    Identify the mechanism: Locate the small button that activates the sustain function and the contact pad it pushes against.
    Identify the Problem

  4. Initial Repair Attempt

    • Apply 3 layers of strong tape to the contact pad to increase its height and improve contact with the button.
    • Reassemble the pedal, ensuring the button is correctly positioned to activate when the pedal is pressed.

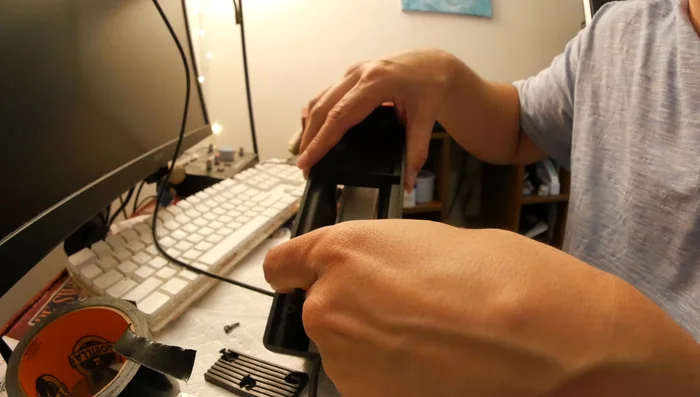

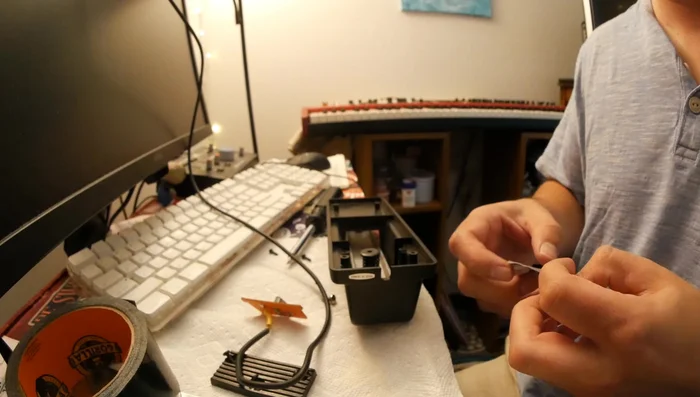

    • Test the pedal. If the button still clicks, disassemble again.
    Test the pedal. If the button still clicks, disassemble again.Test the pedal. If the button still clicks, disassemble again.Test the pedal. If the button still clicks, disassemble again.
    Initial Repair Attempt

  5. Refine the Repair

    • Apply additional tape to prevent the button from popping up and creating the clicking sound.

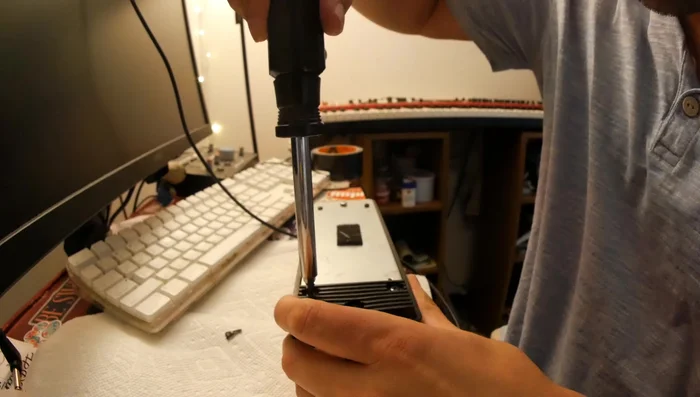

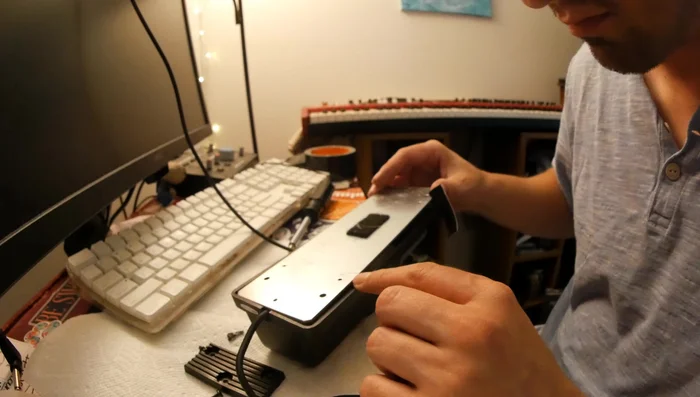

    • Reassemble the pedal one final time.
    Reassemble the pedal one final time.Reassemble the pedal one final time.
    Refine the Repair

Read more: Increase Expression Pedal Sensitivity: Ultimate Guide

Tips

  • Carefully label or remember the screw positions before disassembling.
  • Clean the interior of the pedal thoroughly to remove any dust that may be interfering with the mechanism.
  • Use a strong adhesive tape like Gorilla Tape to ensure a secure and lasting fix.

Common Mistakes to Avoid

1. Incorrect Polarity

Reason: Connecting the sustain pedal to the wrong polarity jacks on the keyboard or module can lead to no response or erratic behavior.
Solution: Double-check the polarity markings (+ and -) on both the pedal and your instrument's input jacks and ensure a correct connection.

2. Faulty Cable or Connection

Reason: A damaged cable or a loose connection at either the pedal or the instrument will prevent proper signal transmission.
Solution: Inspect the cable for kinks or breaks, and firmly re-seat both ends into their respective jacks.

3. Ignoring Internal Issues

Reason: Focusing solely on external connections while the problem originates from a malfunctioning switch or internal wiring within the pedal itself is a common oversight.
Solution: If external checks yield no results, open the pedal carefully and inspect the internal components for damage or loose solder joints.

FAQs

My sustain pedal is unresponsive, but the power to my keyboard is fine. What could be wrong?
There are several possibilities. First, check the cable connecting the pedal to your keyboard for damage or loose connections. Ensure the pedal is firmly plugged into both the keyboard and the pedal itself. If the cable seems fine, the problem might lie within the pedal itself – either a faulty internal switch or a broken connection within the pedal. Try a different sustain pedal if possible to rule out the keyboard as the issue.
Troubleshooting a malfunctioning sustain pedal can be frustrating, especially if you're unsure of its inner workings. Before we dive into the repair process, understanding the different types of pedals available can be helpful in diagnosing the problem. For a closer look at popular models and their features, you might find our guide on excellent Roland piano pedals useful. This knowledge will help you better identify your specific pedal and its potential issues, leading to a more effective repair.
